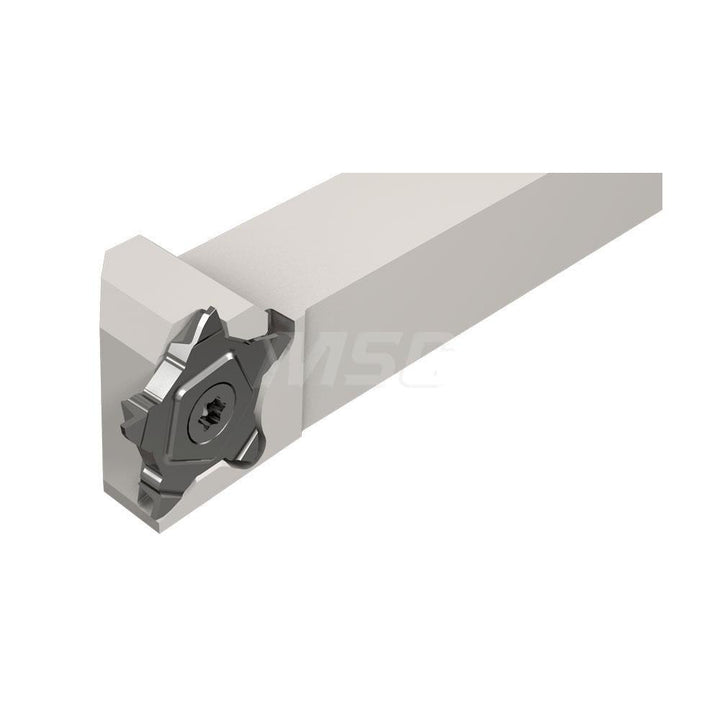

Indexable Grooving - Iscar 2394663
MFR# 2394663Series PentaCut
$206.18List $212.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2394663 indexable grooving. Series PentaCut.
Specifications
Compatible insert size codePENTA 24N-J-RS; PENTA 24N-RS/LS
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length0.7700
Insert compatibilityPENTA 24N RS
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.2560
Maximum groove width0.1890
Minimum groove width0.0197
Msc manufacturer numberPCHRS 25.4-24
Overall length5.5000
Shank height1.0000
Shank length4.7300
Shank width diameter in1
StandardsISO 13399
Toolholder stylePCH
