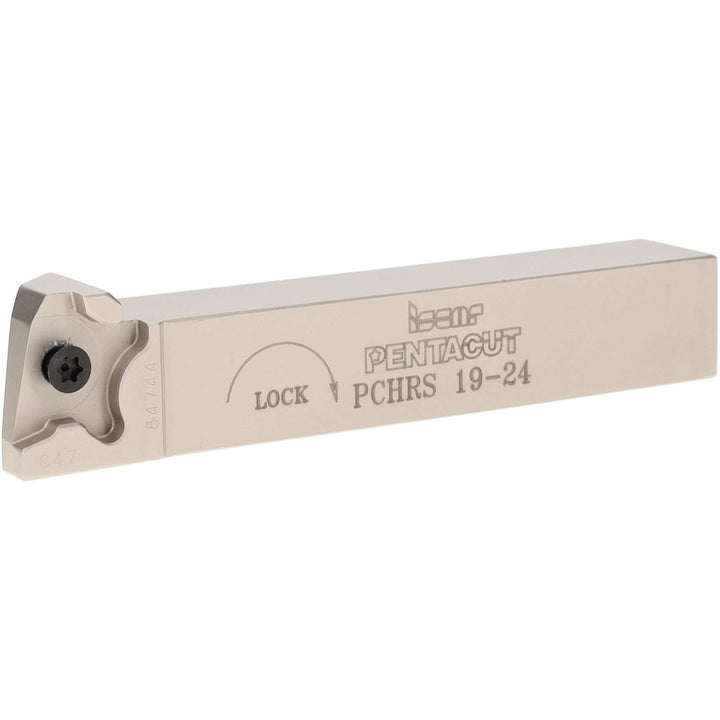

Indexable Grooving - Iscar 2394823
MFR# 2394823Series PentaCut
$194.07List $200.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2394823 indexable grooving. Series PentaCut.
Specifications
Compatible insert size codePENTA 24N-J-RS; PENTA 24N-RS/LS
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head height0.9500
Head length0.7700
Insert compatibilityPENTA 24...
Insert holding methodScrew
Maximum depth of cut0.2560
Maximum groove width0.1890
Minimum groove width0.0310
Msc manufacturer numberPCHR/LS 19-24
Overall length4.7000
Shank height0.7500
Shank length3.9300
Shank width diameter in3/4
StandardsISO 13399
Toolholder stylePCH
