Iscar

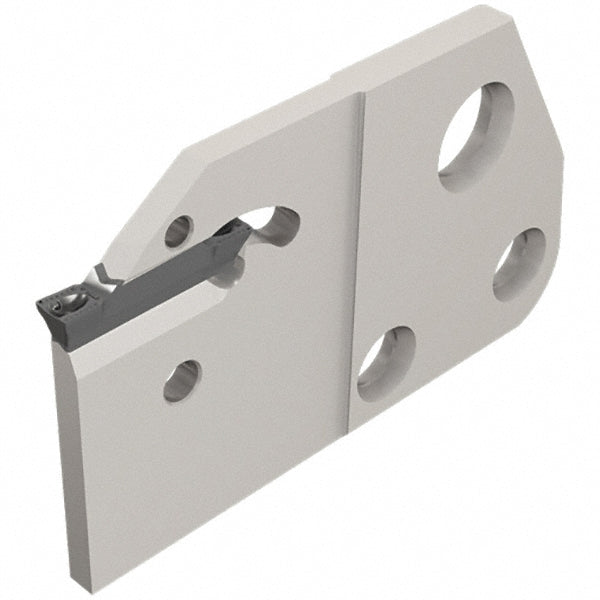

Indexable Grooving - Iscar 2395856
MFR# 2395856Series Do Grip; Do-Grip
$143.69List $145.80
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2395856 indexable grooving. Series Do Grip; Do-Grip.
Specifications
Blade height1.1811
Blade styleDGAD
Blade width0.1575
Compatible insert styleDGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGN-UT/UA; DGN-W; DGR/L-C DGRC/LC-C; DGR/L-J/JS; GRIP; GRIP (Full Radius)
Complete insert compatibilityGRIP 5005Y; GRIP 5008Y; GRIP 5025Y
Cutting directionNeutral
Cutting tool applicationGrooving; Parting; Turning
Insert holding methodSelf Grip
Maximum groove width0.1969
Maximum workpiece diameter1.9685
Minimum groove width0.1890
Overall length1.9882
StandardsISO 13399
