Iscar

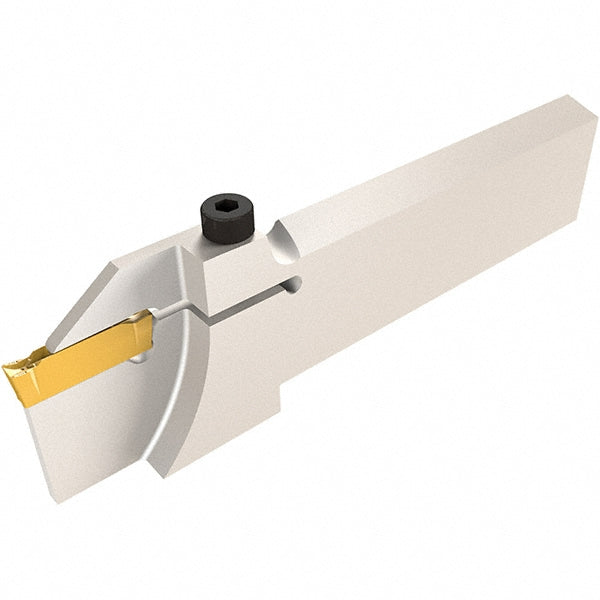

Indexable Grooving - Iscar 2398840
MFR# 2398840Series Do-Grip
$285.48List $294.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2398840 indexable grooving. Series Do-Grip.
Specifications
Blade height1.2598
Blade styleDGFH
Blade width0.3150
Compatible insert styleDGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-Z; DGR/L-C DGRC/LC-C; DGR-Z/ZS
Complete insert compatibilityDGL 3102C-15D; DGL 3102C-6D; DGLC 3102C-6D; DGN 3002Z; DGN 3003UA; DGN 3003UT; DGN 3102LF; DGN 3102LFT; DGR 3000ZS-15D; DGR 3000ZS-6D; DGR 3002Z-6D; DGR 3102C-15D; DGR 3102C-6D
Cutting directionLeft Hand
Cutting tool applicationGrooving; Parting; Turning
Maximum depth of cut0.7087
Maximum groove width0.1252
Maximum workpiece diameter1.9685
Minimum groove width0.1181
Overall length4.7244
Single or double endSingle
StandardsISO 13399
