Iscar

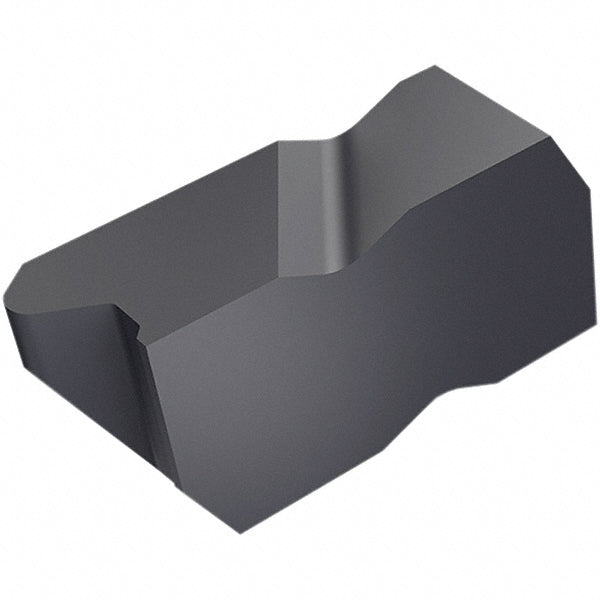

FLT-3R-CB IC908 Carbide Insert, Grade IC908 - Iscar 2413048
MFR# 2413048ISO/ANSI# FLT-3R-CB IC908Series Notch-Grip
$21.12List $27.05
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
Description
The Iscar 2413048 is a FLT-3R-CB IC908 carbide indexable insert, grade IC908.
Specifications
ChipbreakerCB
Coating processPVD
Corner radius0.0051
External pitch8-20 TPI
Finish coatingCoated
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3R
Insert styleFLT
Internal pitch8-12 TPI
Iso codeFLT-3R-CB IC908
Manufacturer gradeIC908
Material gradeFine Grain
Maximum corner radius0.0051
StandardsISO 13399
Thickness0.344
Thread standardISO; UN
Thread typeInternal; External
