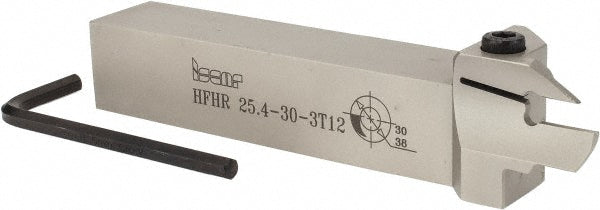

Indexable Grooving - Iscar 2500091
MFR# 2500091Series Heliface
$213.05List $220.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500091 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0200
Compatible insert size codeHFPR/L; HFPR/L (Full Radius)
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height1.3500
Head length1.5000
Insert compatibilityHFPR
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.4700
Maximum groove outside diameter1.5000
Maximum groove width0.1180
Maximum workpiece diameter1.5000
Minimum axial groove inside diameter1.1800
Minimum groove width0.1180
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length in4-1/2
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
