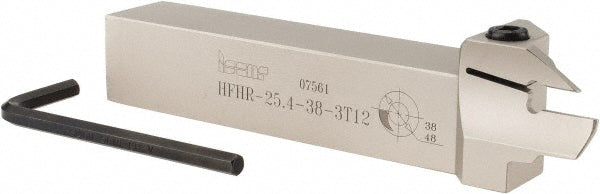

Indexable Grooving - Iscar 2500093
MFR# 2500093Series Heliface
$223.51List $230.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500093 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0200
Compatible insert size codeHFPR/L; HFPR/L (Full Radius)
Complete insert compatibilityHFPR 3003; HFPR 3015
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height1.3900
Head length in1-1/2
Insert compatibilityHFPR 30..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.4700
Maximum groove outside diameter1.8900
Maximum groove width0.1180
Maximum workpiece diameter1.8900
Minimum axial groove inside diameter1.5000
Minimum groove width0.1180
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length in4-1/2
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
