Iscar

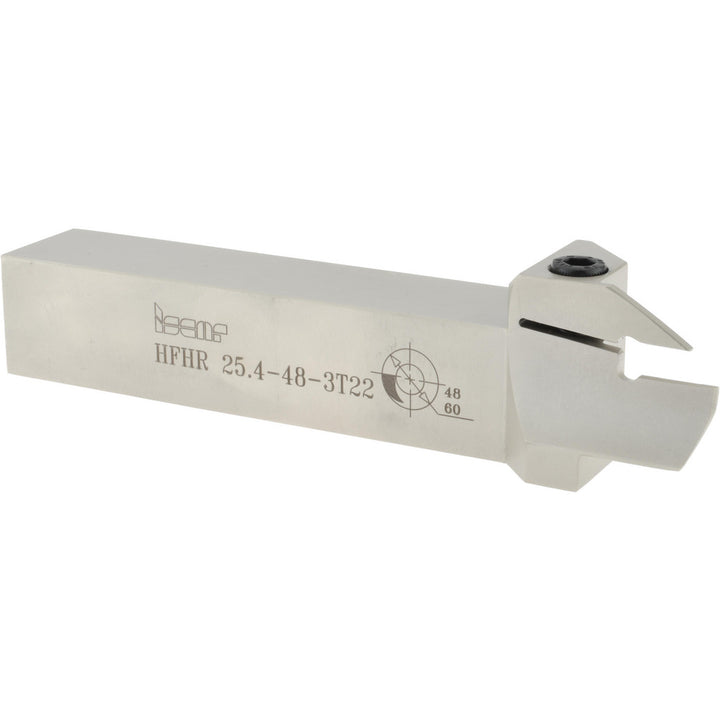

Indexable Grooving - Iscar 2500095
MFR# 2500095Series Heliface
$229.60List $237.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500095 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0200
Compatible insert size codeHFPR/L; HFPR/L (Full Radius)
Complete insert compatibilityHFPR 3003; HFPR 3015
Coolant throughNo
Hand of holderRight Hand
Head height1.4300
Head length1.57
Insert compatibilityHFPR 30..
Insert holding methodClamp
Maximum depth of cut0.8700
Maximum groove outside diameter2.3600
Maximum groove width0.1180
Maximum workpiece diameter2.3600
Minimum axial groove inside diameter1.8900
Minimum groove width0.1180
Multi use toolYes
Overall length6
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.4300
Toolholder styleHFH
