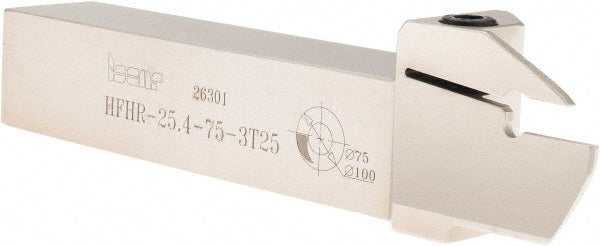

Indexable Grooving - Iscar 2500099
MFR# 2500099Series Heliface
$265.15List $273.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500099 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0200
Compatible insert size codeHFPR/L; HFPR/L (Full Radius)
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height1.4300
Head length1.6900
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.9800
Maximum groove outside diameter3.9400
Maximum groove width0.1180
Maximum workpiece diameter3.9400
Minimum axial groove inside diameter2.9500
Minimum groove width0.1180
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.3100
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
