Iscar

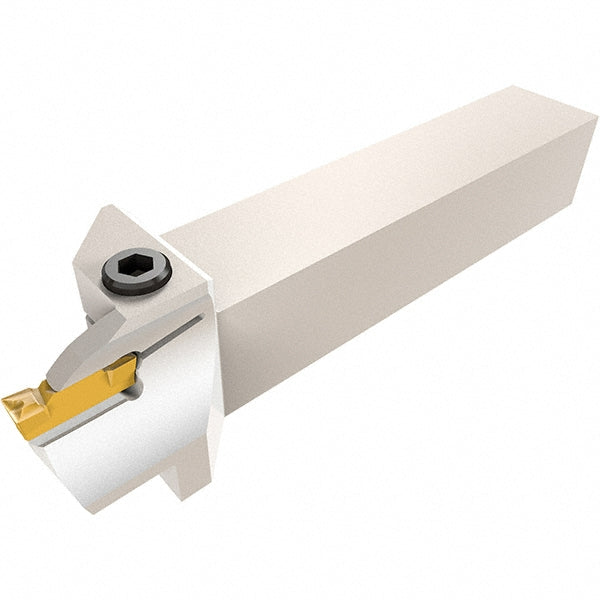

Indexable Grooving - Iscar 2500129
MFR# 2500129Series Heliface
$265.15List $273.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500129 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0400
Compatible insert size codeDGN; GRIP 5
Complete insert compatibilityDGN 4803C; DGN 4803J; DGN 5003C; DGN 5003J; DGN 5003JT; DGN 5003W; GRIP 5005Y; GRIP 5008Y; HFPR 5004
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height1.4300
Head length1.7300
Insert compatibilityDGN..; GRIP 50..; HFPR 5004
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.9800
Maximum groove outside diameter2.7600
Maximum groove width0.1970
Maximum workpiece diameter2.7600
Minimum axial groove inside diameter2.1700
Minimum groove width0.1970
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.2700
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
