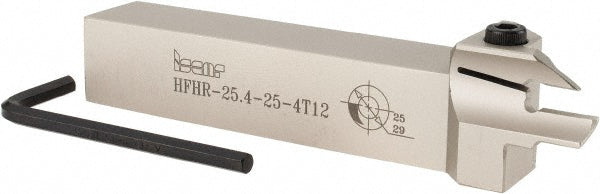

Indexable Grooving - Iscar 2500195

Iscar

Indexable Grooving - Iscar 2500195

MFR# 2500195Series Heliface

$223.51List $230.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2500195 indexable grooving. Suited for universal. Series Heliface.

Specifications

Back of bar to cutting edge1.0200
Compatible insert size codeDGN; GRIP 4
Complete insert compatibilityDGN 1002J; DGN 1402J; DGN 1502J; DGN 2002C; DGN 2002JT; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2502C; DGN 3100JS; DGN 3102C; DGN 3102J; DGN 3102JT; DGN 3202J; DGN 4003C; DGN 4003J; DGN 4003JT; DGN 4803C; DGN 4803J; DGN 5003C; DGN 5003J; DGN 500
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height1.3500
Head length1.5400
Insert compatibilityDG..; GRIP; HG..
Insert holding methodClamp
Internal or externalExternal
Maximum bore depth0.8300
Maximum depth of cut0.4700
Maximum groove outside diameter1.1400
Maximum groove width0.1570
Maximum workpiece diameter1.1400
Minimum axial groove inside diameter0.9840
Minimum groove width0.1570
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length7.5400
Shank width1.0000
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
