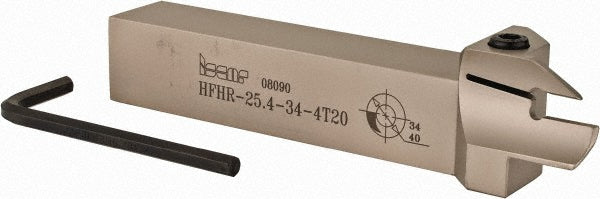

Indexable Grooving - Iscar 2500199
MFR# 2500199Series Heliface
$233.67List $237.10
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500199 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0200
Compatible insert size codeDGN; GRIP 4
Complete insert compatibilityDGN 4003C; DGN 4003J; DGN 4003JT; DGN 4803J; GRIP 4002Y; GRIP 4004Y; GRIP 4020Y; GRIP 476-080Y; GRIP 476-238Y; HFPR 4004
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height1.3900
Head length1.5400
Insert compatibilityDGN 4..; GRIP 4..; HFPR 4004
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.7900
Maximum groove outside diameter1.5750
Maximum groove width0.1570
Maximum workpiece diameter1.5700
Minimum axial groove inside diameter1.3800
Minimum groove width0.1570
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.4600
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
