Iscar

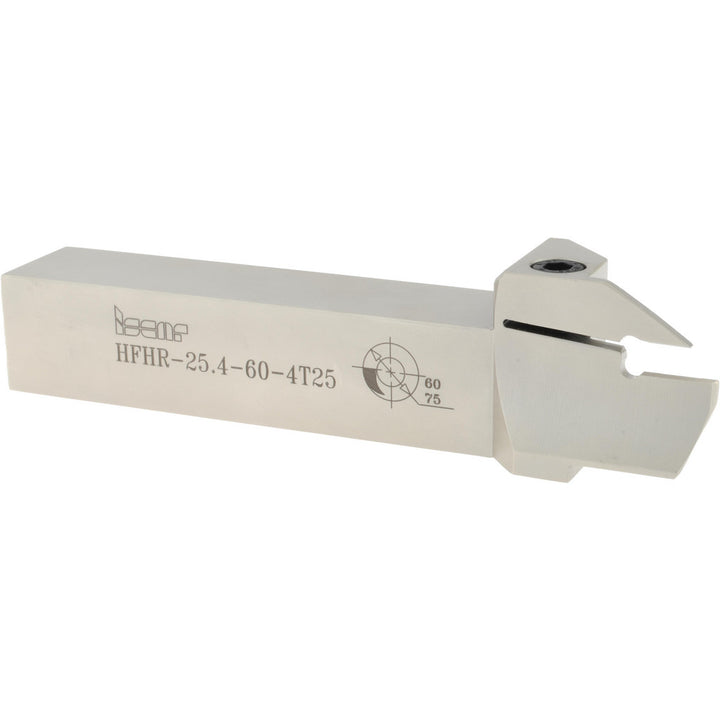

Indexable Grooving - Iscar 2500205
MFR# 2500205Series Heliface
$269.85List $273.80
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500205 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0200
Compatible insert size codeDGN; GRIP 4
Complete insert compatibilityDGN 4003C; DGN 4003J; DGN 4003JT; DGN 4803J; GRIP 4002Y; GRIP 4004Y; GRIP 4020Y; GRIP 476-080Y; GRIP 476-238Y; HFPR 4004
Coolant throughNo
Hand of holderRight Hand
Head height1.4700
Head length1.73
Insert compatibilityDGN 4..; GRIP 4..; HFPR 4004
Insert holding methodClamp
Maximum depth of cut0.9800
Maximum groove outside diameter2.9600
Maximum groove width0.1570
Maximum workpiece diameter2.9500
Minimum axial groove inside diameter2.3600
Minimum groove width0.1570
Multi use toolYes
Overall length6
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.2700
Toolholder styleHFH
