Iscar

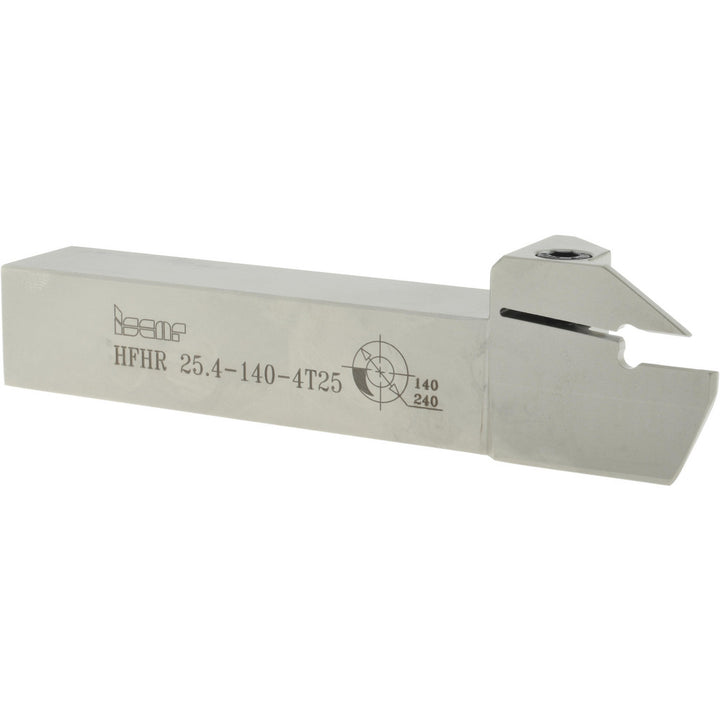

Indexable Grooving - Iscar 2500211
MFR# 2500211Series Heliface
$265.15List $273.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500211 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0200
Compatible insert size codeDGN; GRIP 4
Complete insert compatibilityDGN; DGN 4003; GRIP; GRIP 4004Y
Coolant throughNo
Hand of holderRight Hand
Head height1.4700
Head length1.73
Insert holding methodClamp
Maximum depth of cut0.9800
Maximum groove outside diameter9.4500
Maximum groove width0.1570
Maximum workpiece diameter9.4500
Minimum axial groove inside diameter5.5100
Minimum groove width0.1570
Multi use toolNo
Overall length6
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.2700
Toolholder styleHFHR
