Iscar

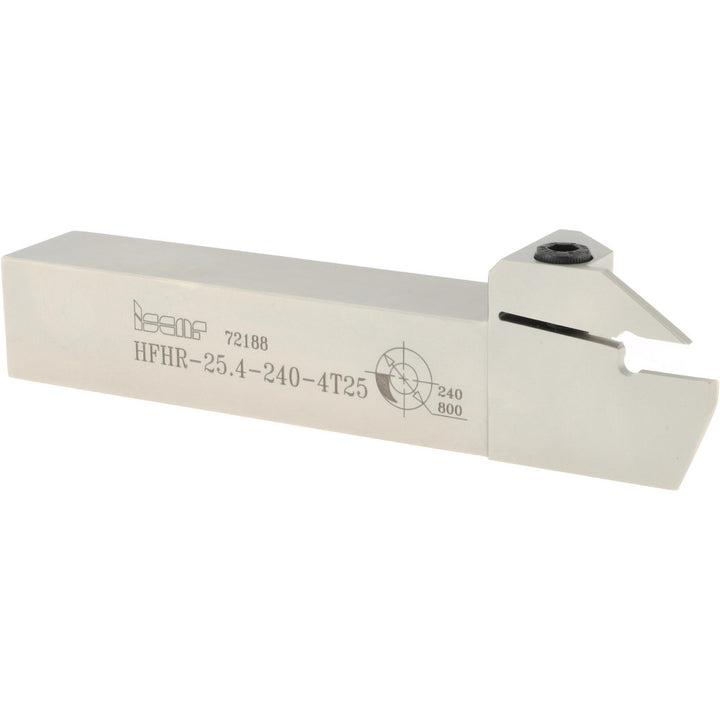

Indexable Grooving - Iscar 2500213
MFR# 2500213Series Heliface
$265.15List $273.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500213 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0200
Compatible insert size codeDGN; GRIP 4
Complete insert compatibilityDGN 4003C; DGN 4003J; DGN 4003JT; DGN 4803J; GRIP 4002Y; GRIP 4004Y; GRIP 4020Y; GRIP 476-080Y; GRIP 476-238Y; HFPR 4004
Coolant throughNo
Hand of holderRight Hand
Head height1.4700
Head length1.73
Insert compatibilityDGN 4..; GRIP 4..; HFPR 4004
Insert holding methodClamp
Maximum depth of cut0.9800
Maximum groove outside diameter31.5000
Maximum groove width0.1570
Maximum workpiece diameter31.5000
Minimum axial groove inside diameter9.4500
Minimum groove width0.1570
Multi use toolYes
Overall length6
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.2700
Toolholder styleHFH
