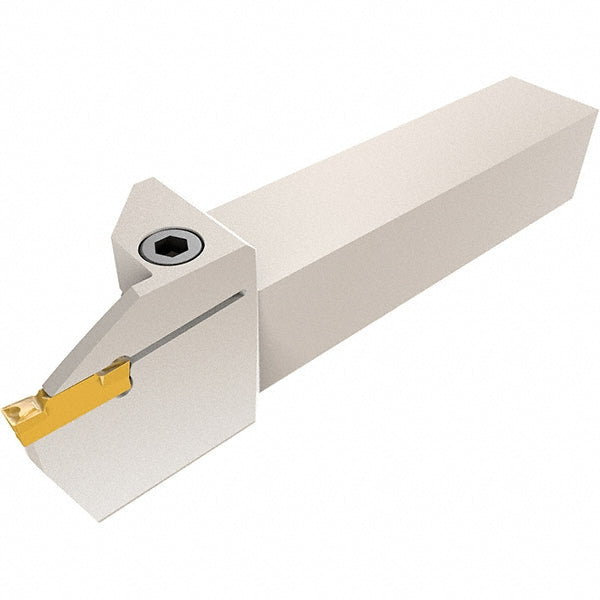

Indexable Grooving - Iscar 2500214
MFR# 2500214Series Heliface
$265.15List $273.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500214 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0200
Compatible insert size codeHGPL 4
Complete insert compatibilityHFPL 4004; HFPL 4020; HGPL 4002Y; HGPL 4004Y; HGPL 4020Y
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head height1.4700
Head length1.7300
Insert compatibilityH.PL 40..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.9800
Maximum groove outside diameter31.5000
Maximum groove width0.1570
Maximum workpiece diameter31.5000
Minimum axial groove inside diameter9.4500
Minimum groove width0.1570
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.2700
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
