Iscar

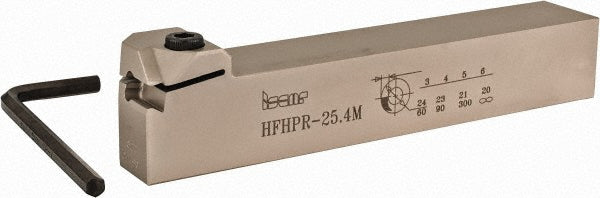

Indexable Grooving - Iscar 2500257
MFR# 2500257Series Heliface
$210.91List $214.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500257 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.2200
Compatible insert size codeDGN; GRIP 4 - 6
Complete insert compatibilityHFPL 3003; HFPL 3015; HFPL 4004; HFPL 4020; HFPL 5004; HFPL 5025; HFPL 6004; HFPL 6030; HFPR 3003; HFPR 3015; HFPR 4004; HFPR 4020; HFPR 5004; HFPR 5025; HFPR 6004; HFPR 6030
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height1.3500
Head length0.9800
Insert compatibilityHFP..
Insert holding methodClamp
Internal or externalExternal
Maximum bore depth0.9800
Maximum depth of cut0.1970
Maximum groove outside diameter78.7400
Maximum groove width0.2360
Minimum axial groove inside diameter0.9500
Minimum groove width0.1180
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length6.9800
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFHP
Toolholder typeFace Grooving
