Iscar

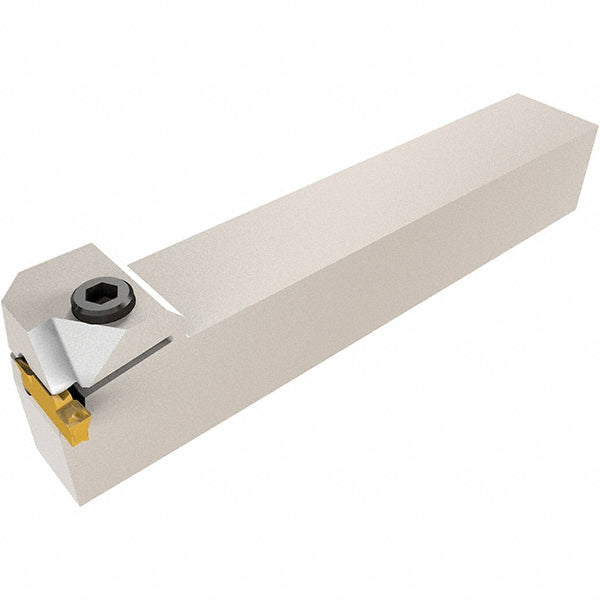

Indexable Grooving - Iscar 2500258
MFR# 2500258Series Heliface
$207.24List $214.00
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500258 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.2200
Compatible insert size codeHGPL 4 - 6
Complete insert compatibilityHFPL 3003; HFPL 3015; HFPL 4004; HFPL 4020; HFPL 5004; HFPL 5025; HFPL 6004; HFPL 6030
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head height1.3500
Insert compatibilityHFPL
Insert holding methodClamp
Internal or externalInternal or External
Maximum depth of cut0.1970
Maximum groove outside diameter78.7400
Maximum groove width0.2360
Minimum axial groove inside diameter0.9500
Minimum groove width0.1180
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFHP
Toolholder typeFace Grooving
