Iscar

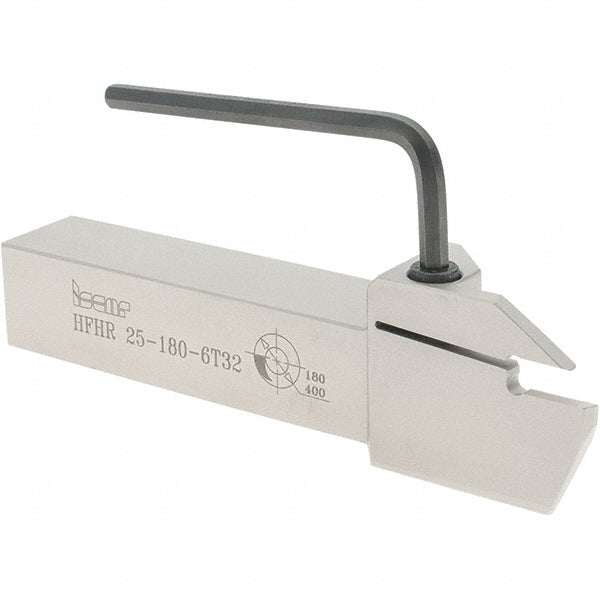

Indexable Grooving - Iscar 2500290
MFR# 2500290Series Heliface
$293.62List $303.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500290 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge (mm)26.40
Compatible insert size codeDGN; GRIP 6
Complete insert compatibilityDGN-UT/UA; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; GRIP; HFPR/L; HFPR/L (Full Radius)
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height (mm)40.00
Head length (mm)51.00
Insert compatibilityDGN..; GRIP; HFP..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut (mm)32.00
Maximum groove outside diameter (mm)400.00
Maximum groove width (mm)6.00
Maximum workpiece diameter (mm)400.00
Minimum axial groove inside diametermm180.00
Minimum groove width (mm)6.00
Multi use toolYes
Overall length (mm)150.00
Primary workpiece materialUniversal
Shank height (mm)25.00
Shank length (mm)99.00
Shank width diameter (mm)25.00
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
