Iscar

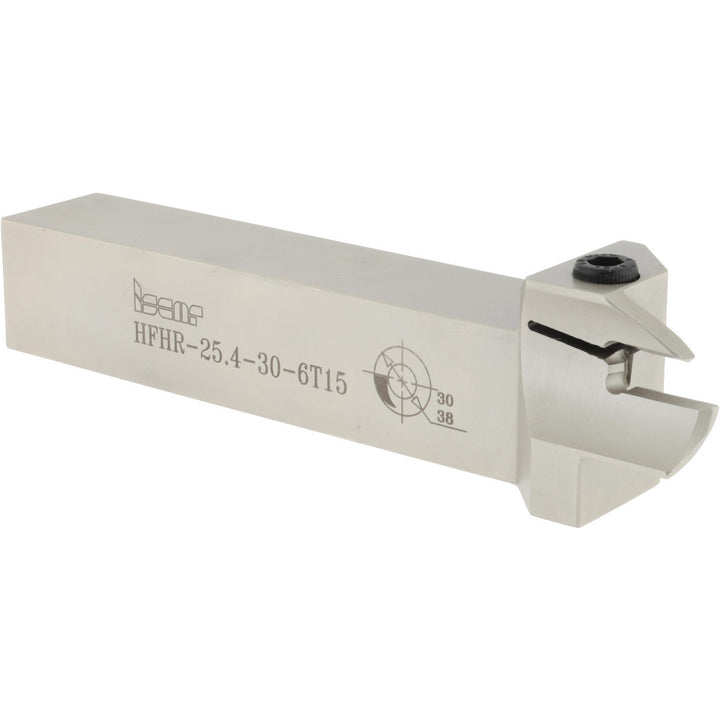

Indexable Grooving - Iscar 2500320
MFR# 2500320Series Heliface
$223.51List $230.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500320 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0500
Compatible insert size codeDGN; GRIP 6
Complete insert compatibilityDGN 6303C; DGN 6303J; DGN 6303JT; GRIP 6005Y; GRIP 6008Y; GRIP 6030Y; GRIP 635-080Y; GRIP 635-318Y; HFPR 6004
Coolant throughNo
Hand of holderRight Hand
Head height1.3900
Head length1.42
Insert compatibilityDGN 6303; GRIP 6..; HFPR 6004
Insert holding methodClamp
Maximum depth of cut0.6700
Maximum groove outside diameter1.5000
Maximum groove width0.2360
Maximum workpiece diameter1.5000
Minimum axial groove inside diameter1.1800
Minimum groove width0.2360
Multi use toolYes
Overall length6
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.5800
Toolholder styleHFH
