Iscar

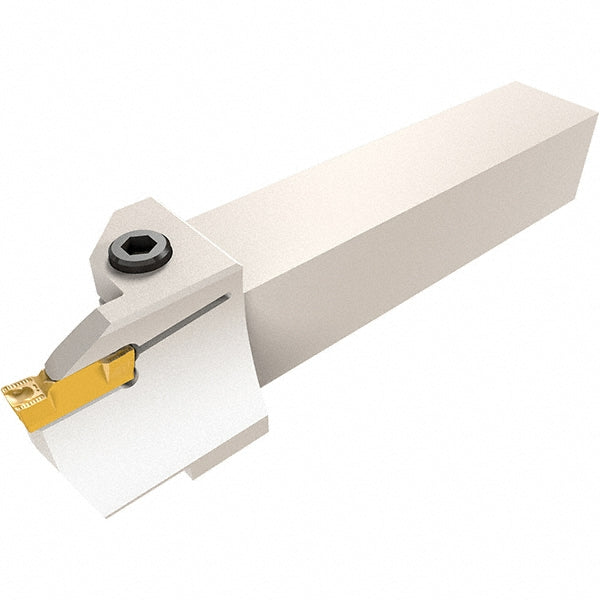

Indexable Grooving - Iscar 2500327
MFR# 2500327Series Heliface
$293.62List $303.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500327 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0500
Compatible insert size codeHGPL 6
Complete insert compatibilityHFPL 6004; HFPL 6030; HGPL 6005Y; HGPL 6030Y
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head height1.4700
Head length in2
Insert compatibilityH.PL 60..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.2600
Maximum groove outside diameter3.9400
Maximum groove width0.2360
Maximum workpiece diameter3.9400
Minimum axial groove inside diameter2.7600
Minimum groove width0.2360
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length in4
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
