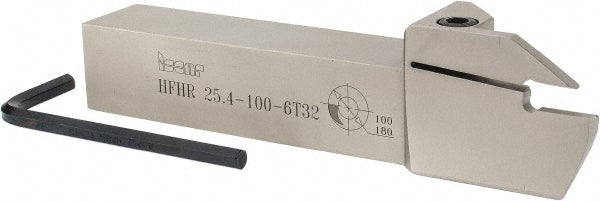

Indexable Grooving - Iscar 2500328
MFR# 2500328Series Heliface
$293.62List $303.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500328 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge1.0500
Compatible insert size codeDGN; GRIP 6
Complete insert compatibilityDGN; DGN 6003; GRIP; GRIP 6005Y
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height1.4700
Head length2.0000
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.2600
Maximum groove outside diameter7.0000
Maximum groove width0.2360
Maximum workpiece diameter7.0900
Minimum axial groove inside diameter3.9400
Minimum groove width0.2360
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length in4
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFH
Toolholder typeFace Grooving
