Iscar

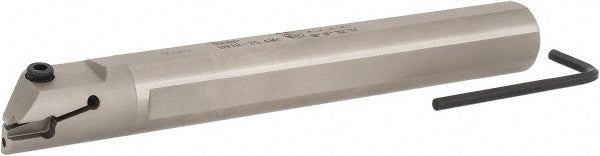

Indexable Grooving - Iscar 2500342
MFR# 2500342Series Heliface
$419.75List $425.90
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500342 indexable grooving. Suited for universal. Series Heliface.
Specifications
Center to cutting edge0.4500
Compatible insert size codeDGN-MF; DGN-W; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; GRIP; GRIP (Full Radius); HFPR/L; HFPR/L (Full Radius); HGPL
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Insert holding methodScrew
Internal or externalInternal
Maximum depth of cut0.1970
Maximum groove width0.2360
Minimum groove width0.1570
Multi use toolNo
Overall length8.0000
Primary workpiece materialUniversal
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHFI
Toolholder typeNon-Face Grooving
