Iscar

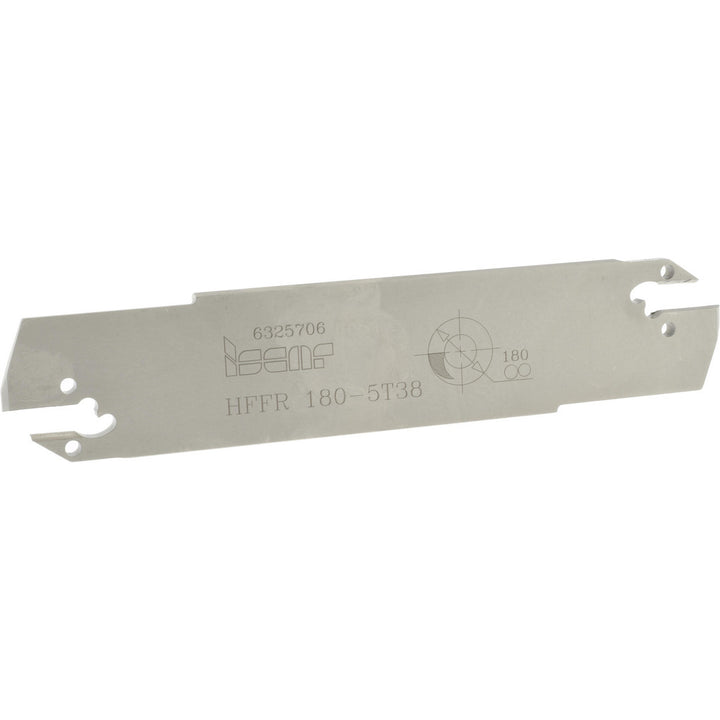

Indexable Grooving - Iscar 2500354
MFR# 2500354Series Heliface
$266.11List $274.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500354 indexable grooving. Series Heliface.
Specifications
Blade height1.2598
Blade styleHFF
Blade width0.1575
Compatible insert size code5025
Compatible insert styleHFPR/L 5025...
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
Maximum depth of cut1.4961
Maximum workpiece diameter59.0551
Minimum groove width0.1969
Minimum workpiece diameter7.0866
Overall length5.9055
StandardsISO 13399
