Iscar

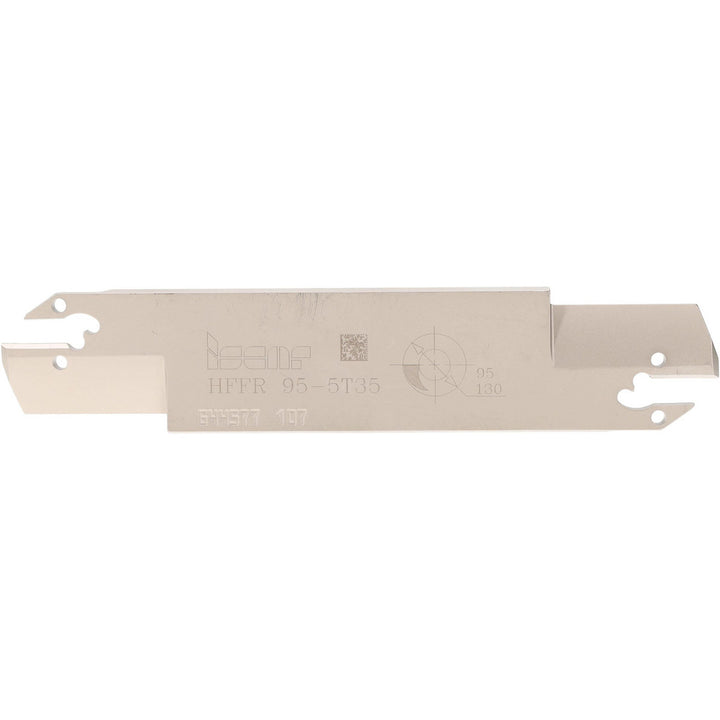

Indexable Grooving - Iscar 2500364
MFR# 2500364Series Heliface
$266.11List $274.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500364 indexable grooving. Series Heliface.
Specifications
Blade height1.2598
Blade styleHFF
Blade width0.2047
Compatible insert size code5004
Compatible insert styleHFPR/L 5004...
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
Maximum depth of cut1.3780
Maximum workpiece diameter5.1181
Minimum groove width0.1969
Minimum workpiece diameter3.7402
Overall length5.9055
StandardsISO 13399
