Iscar

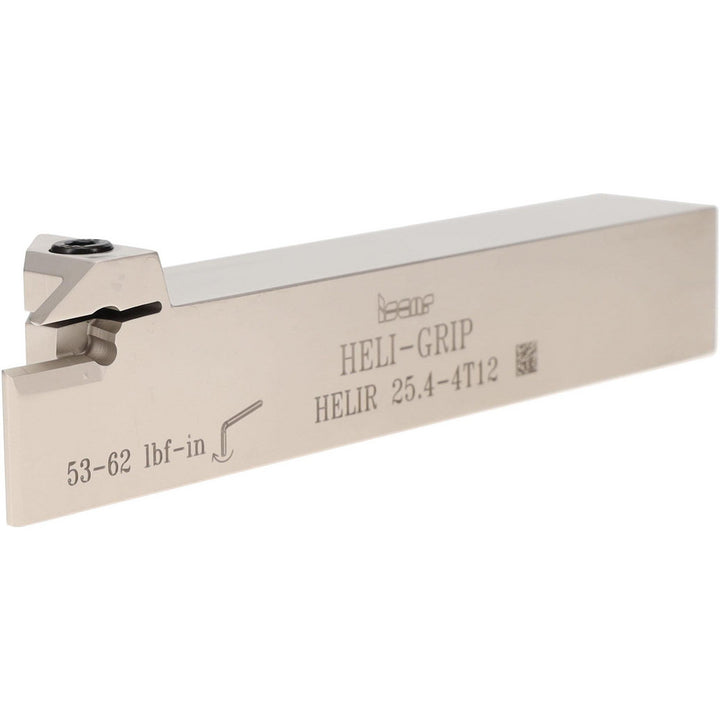

Indexable Grooving - Iscar 2500446
MFR# 2500446Cat# HELIR 25.4-4T12Series Heli-Grip
$220.41List $227.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500446 indexable grooving. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.9400
Compatible insert size codeDGN-MF; DGN-UT/UA; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS; GRIP; GRIP (Full Radius)
Complete insert compatibilityDGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length1.1400
Insert compatibilityDG..; GRIP; HGN 300.
Insert holding methodClamp
Insert seat size0.1
Internal or externalExternal
Manufacturers catalog numberHELIR 25.4-4T12
Maximum depth of cut0.4700
Maximum groove width0.1870
Minimum groove width0.1570
Overall length6.0000
Shank height1.0000
Shank length4.8600
Shank width diameter in1
StandardsISO 13399
Toolholder styleHELI
