Iscar

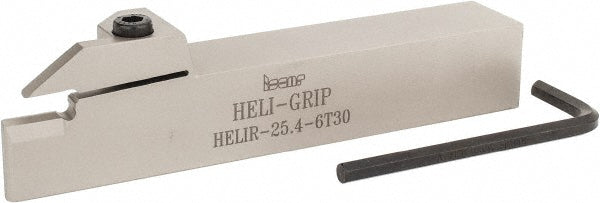

Indexable Grooving - Iscar 2500456
MFR# 2500456Series Heli-Grip
$220.41List $227.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500456 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.9000
Compatible insert size codeDG.-6; GRIP-6
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length2.0200
Insert holding methodClamp
Internal or externalExternal
Maximum groove width in1/4
Maximum workpiece diameter2.3600
Minimum groove width0.2360
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length3.9800
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHELI
Toolholder typeNon-Face Grooving
