Iscar

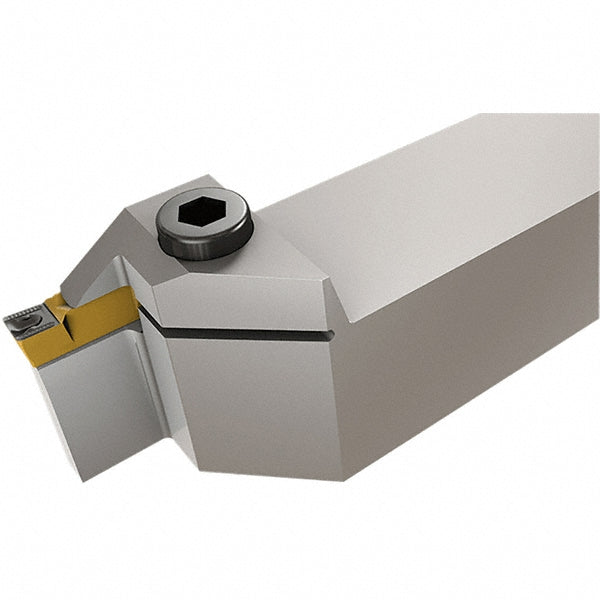

Indexable Grooving - Iscar 2500508
MFR# 2500508Series Heli-Grip
$205.21List $211.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500508 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.7402
Compatible insert size codeGRIP-3; HG.-3
Complete insert compatibilityGRIP 3002Y; GRIP 3003Y; GRIP 3015Y; GRIP 318-040Y; GRIP 318-159Y; HGN 3002J; HGN 3003C; HGN 3003UT
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length (mm)29.00
Insert compatibilityGRIP 3..; HGN 30..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.4724
Maximum groove width0.1252
Minimum groove width0.1181
Multi use toolYes
Overall length5.3150
Primary workpiece materialUniversal
Shank height0.7874
Shank length (mm)106.00
Shank width diameter0.7874
StandardsISO 13399
Toolholder styleHELI
Toolholder typeNon-Face Grooving
