Iscar

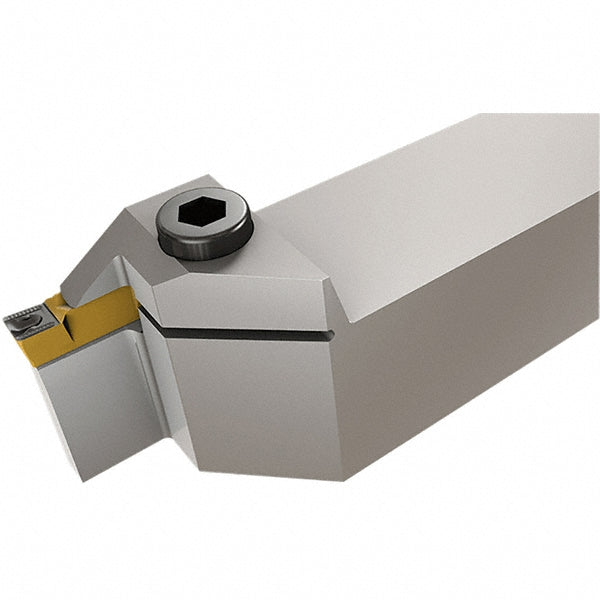

Indexable Grooving - Iscar 2500516
MFR# 2500516Series Heli-Grip
$205.21List $211.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500516 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.7047
Compatible insert size codeDG.-5; GRIP-5
Complete insert compatibilityDGL 5003C-4D; DGN 5003C; DGN 5003J; DGN 5003JT; DGR 5003C-4D; GRIP 5005Y; GRIP 5008Y; GRIP 5025Y
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length (mm)29.00
Insert compatibilityDG.. 5003; GRIP 5..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.4724
Maximum groove width0.1969
Minimum groove width0.1969
Multi use toolYes
Overall length5.3150
Primary workpiece materialUniversal
Shank height0.7874
Shank length (mm)106.00
Shank width diameter0.7874
StandardsISO 13399
Toolholder styleHELI
Toolholder typeNon-Face Grooving
