Iscar

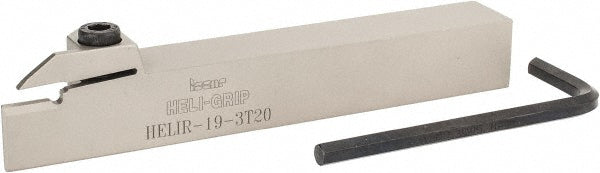

Indexable Grooving - Iscar 2500526
MFR# 2500526Series Heli-Grip
$205.21List $211.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500526 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.7000
Compatible insert size codeGRIP-3; HG.-3
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.4300
Insert holding methodClamp
Internal or externalExternal
Maximum groove width in1/8
Maximum workpiece diameter1.7600
Minimum groove width0.1180
Multi use toolNo
Overall length5.5000
Primary workpiece materialUniversal
Shank height0.7500
Shank length4.0700
Shank width diameter0.7500
StandardsISO 13399
Toolholder styleHELI
Toolholder typeNon-Face Grooving
