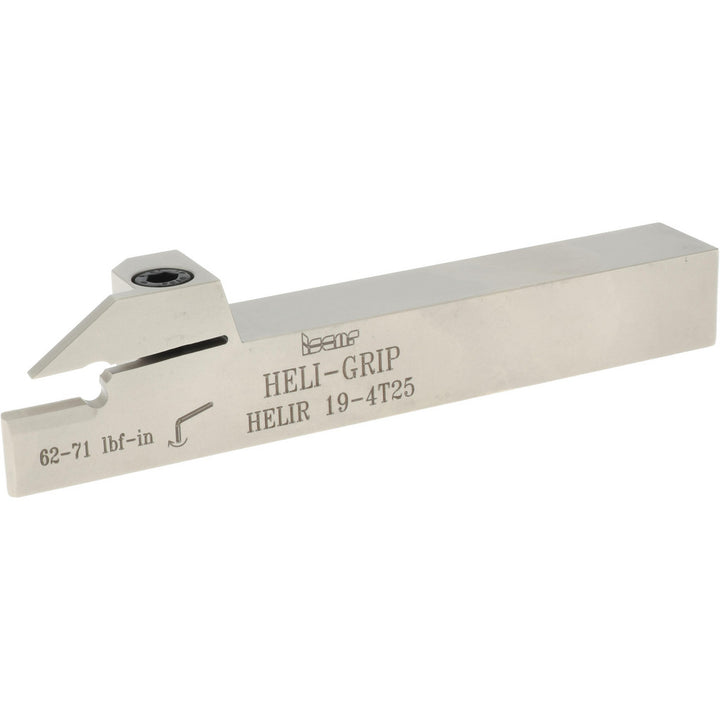

Indexable Grooving - Iscar 2500527
MFR# 2500527Series Heli-Grip
$205.21List $211.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500527 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.6900
Compatible insert size codeDG.-4; GRIP-4
Complete insert compatibilityDGL 4003C-4D; DGN 4003C; DGN 4003J; DGN 4003JT; DGR 4003C-4D; GRIP 4002Y; GRIP 4004Y; GRIP 4020Y; GRIP 476-080Y; GRIP 476-238Y
Coolant throughNo
Hand of holderRight Hand
Head length1.7
Insert compatibilityDG.. 4003; GRIP 4..
Insert holding methodClamp
Maximum groove width0.1870
Maximum workpiece diameter1.9700
Minimum groove width0.1570
Multi use toolYes
Overall length5.5
Primary workpiece materialUniversal
Shank height0.7500
Shank length3.8000
Toolholder styleHELI
Toolholder typeExternal Grooving
