Iscar

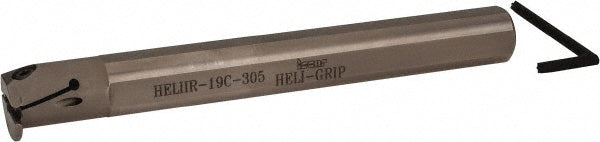

Indexable Grooving - Iscar 2500536
MFR# 2500536Series Heli-Grip
$268.75List $272.70
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500536 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Center to cutting edge0.5800
Compatible insert size codeGRIP; GRIP (Full Radius)
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.1970
Maximum groove width in1/8
Minimum groove width0.1180
Minimum hole diameter0.9860
Multi use toolNo
Overall length6.5000
Primary workpiece materialUniversal
Shank width diameter0.7500
StandardsISO 13399
Toolholder styleHELII
Toolholder typeNon-Face Grooving
