Iscar
Indexable Grooving - Iscar 2500552
MFR# 2500552Series Heli-Grip
$208.84List $211.90
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

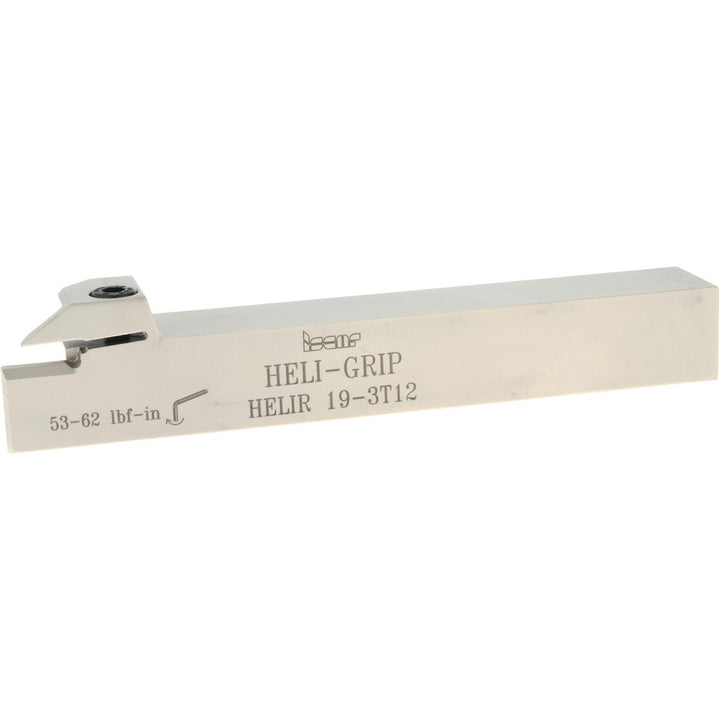

The Iscar 2500552 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.7000
Compatible insert size codeGRIP-3; HG.-3
Complete insert compatibilityGRIP 3002Y; GRIP 3003Y; GRIP 3015Y; GRIP 318-040Y; GRIP 318-159Y; HGN 3002J; HGN 3003C; HGN 3003UT
Coolant throughNo
Hand of holderRight Hand
Head length1.1
Insert compatibilityGRIP 3..; HGN 30..
Insert holding methodClamp
Maximum depth of cut0.4700
Maximum groove width in1/8
Minimum groove width0.1180
Multi use toolYes
Overall length5.5
Primary workpiece materialUniversal
Shank height0.7500
Shank length4.4000
Toolholder styleHELI
Toolholder typeExternal Grooving
