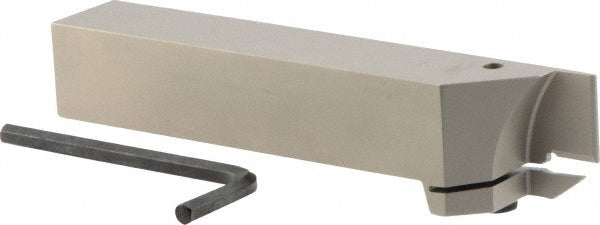

Indexable Grooving - Iscar 2500556
MFR# 2500556Series Heli-Grip
$220.67List $227.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500556 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.9500
Compatible insert size codeGRIP-3; HG.-3
Complete insert compatibilityGRIP 3002Y; GRIP 3003Y; GRIP 3015Y; GRIP 318-040Y; GRIP 318-159Y; HGN 3002J; HGN 3003C; HGN 3003UT
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length1.4000
Insert compatibilityGRIP 3..; HGN 30..
Insert holding methodClamp
Internal or externalExternal
Maximum groove width in1/8
Maximum workpiece diameter1.7600
Minimum groove width0.1180
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.6000
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHELI
Toolholder typeNon-Face Grooving
