Iscar

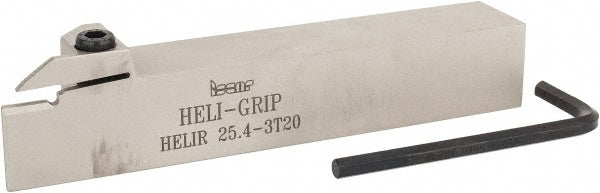

Indexable Grooving - Iscar 2500558
MFR# 2500558Series Heli-Grip
$224.31List $227.60
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500558 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.9500
Compatible insert size codeGRIP-3; HG.-3
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.4300
Insert holding methodClamp
Internal or externalExternal
Maximum groove width in1/8
Maximum workpiece diameter1.7600
Minimum groove width0.1180
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.5700
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleHELI
Toolholder typeNon-Face Grooving
