Iscar

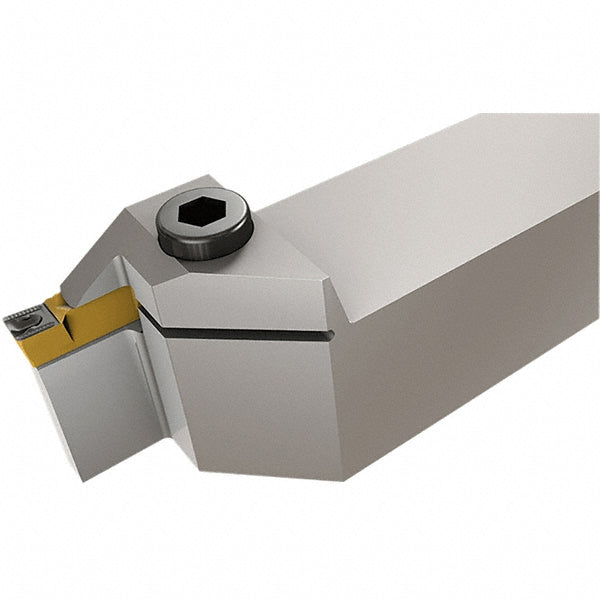

Indexable Grooving - Iscar 2500562
MFR# 2500562Series Heli-Grip
$179.86List $182.50
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500562 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge0.5827
Compatible insert size codeGRIP-3; HG.-3
Complete insert compatibilityGRIP 3002Y; GRIP 3003Y; GRIP 3015Y; GRIP 318-040Y; GRIP 318-159Y; HGN 3002J; HGN 3003C; HGN 3003UT
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length1.4330
Insert compatibilityGRIP 3..; HGN 30..
Insert holding methodClamp
Internal or externalExternal
Maximum groove width0.1252
Maximum workpiece diameter1.5748
Minimum groove width0.1181
Multi use toolYes
Overall length5.5118
Primary workpiece materialUniversal
Shank height0.6299
Shank length4.0788
Shank width diameter0.6299
StandardsISO 13399
Toolholder styleHELI
Toolholder typeNon-Face Grooving
