Iscar

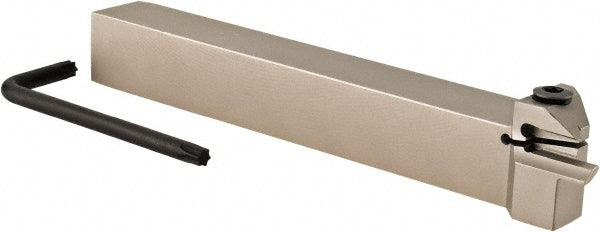

Indexable Grooving - Iscar 2500606
MFR# 2500606Series Heliface
$221.48List $228.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500606 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge0.5900
Compatible insert size codeGRIP; GRIP (Full Radius); HGN-C; HGN-J; HGN-UT; HGPL
Complete insert compatibilityGRIP 3002Y; GRIP 3003Y; GRIP 3015Y; GRIP 318-040Y; GRIP 318-159Y; HGN 3002J; HGN 3003C; HGN 3003UT
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height0.8200
Head length in3/4
Insert compatibilityGRIP 3..; HGN 30..
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.2360
Maximum groove outside diameter0.9800
Maximum groove width0.1180
Maximum workpiece diameter0.9800
Minimum axial groove inside diameter0.6300
Minimum groove width0.1180
Multi use toolYes
Overall length5.0000
Primary workpiece materialUniversal
Shank height0.6250
Shank length in4-1/4
Shank width diameter0.6250
StandardsISO 13399
Toolholder styleHGH
Toolholder typeFace Grooving
