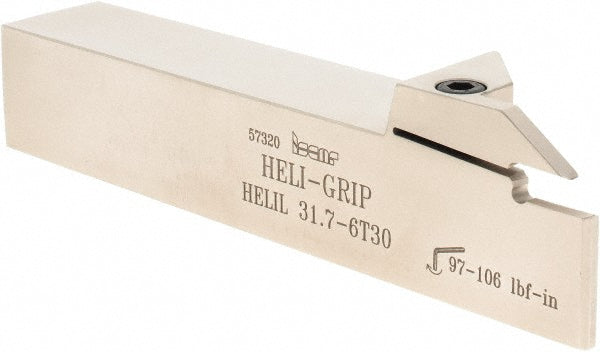

Indexable Grooving - Iscar 2500615
MFR# 2500615Series Heli-Grip
$263.12List $271.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500615 indexable grooving. Suited for universal. Series Heli-Grip.
Specifications
Back of bar to cutting edge1.1500
Compatible insert size codeDG.-6; GRIP-6
Complete insert compatibilityDGL 6303C-4D; DGN 6303C; DGN 6303J; DGN 6303JT; DGR 6303C-4D; GRIP 6005Y; GRIP 6008Y; GRIP 6030Y; GRIP 635-080Y; GRIP 635-318Y
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length in2
Insert compatibilityDG.. 6303; GRIP 6..
Insert holding methodClamp
Internal or externalExternal
Maximum groove width in1/4
Maximum workpiece diameter2.3600
Minimum groove width0.2360
Multi use toolYes
Overall length7.0000
Primary workpiece materialUniversal
Shank height1.2500
Shank length in5
Shank width diameter1.2500
StandardsISO 13399
Toolholder styleHELI
Toolholder typeNon-Face Grooving
