Iscar

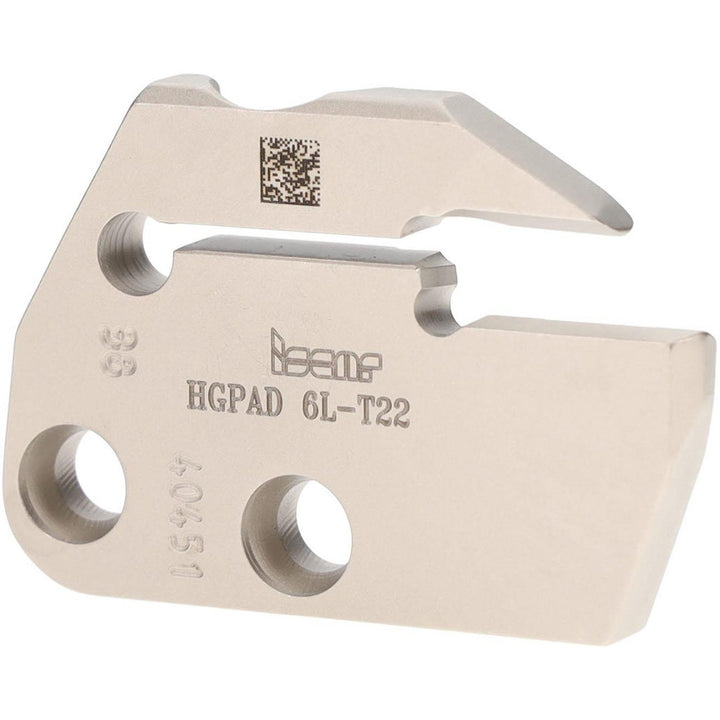

Indexable Grooving - Iscar 2500650
MFR# 2500650Cat# HGPAD 6L-T22Series Heli-Grip; Modular Grip
$151.97List $154.20
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500650 indexable grooving. Series Heli-Grip; Modular Grip.
Specifications
Blade height1.2600
Blade styleHGPAD
Blade width0.2360
Compatible insert styleDGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGN-UT/UA; DGN-W; GRIP; GRIP (Full Radius); HGN-C; HGN-J; HGN-UT
Complete insert compatibilityDGN 1002J; DGN 1402J; DGN 1502J; DGN 2002C; DGN 2002JT; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2202UA; DGN 2202UT; DGN 2502C; DGN 3003UA; DGN 3003UT; DGN 3100JS; DGN 3102C; DGN 3102J; DGN 3102JT; DGN 3202J; DGN 4003C; DGN 4003J; DGN 4003JT; DGN
Cutting directionRight Hand
Cutting height0.9450
Cutting tool applicationGrooving; Parting; Turning
Insert seat size0.2050
Manufacturers catalog numberHGPAD 6L-T22
Maximum depth of cut0.8660
Maximum groove width0.2500
Minimum groove width0.2360
Msc manufacturer number2500650
Overall length1.8780
StandardsISO 13399
