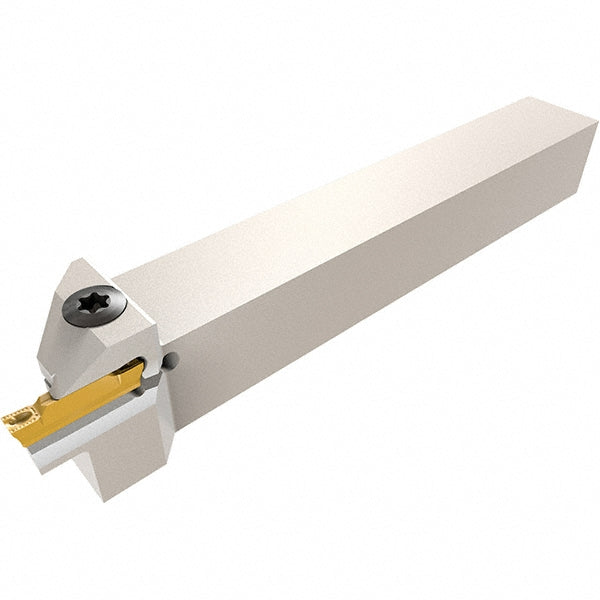

Indexable Grooving - Iscar 2500697
MFR# 2500697Series Heliface
$271.26List $280.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500697 indexable grooving. Suited for universal. Series Heliface.
Specifications
Back of bar to cutting edge0.7500
Compatible insert size codeGRIP; GRIP (Full Radius); HGN-C; HGN-J; HGN-UT; HGPL
Complete insert compatibilityGRIP; GRIP (Full Radius); HGN-C; HGN-J; HGN-UT
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height0.9500
Head length0.7500
Insert compatibilityGRIP; HGN
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.2360
Maximum groove outside diameter0.9800
Maximum groove width0.1180
Maximum workpiece diameter0.9800
Minimum axial groove inside diameter0.6300
Multi use toolYes
Overall length5.0000
Primary workpiece materialUniversal
Shank height0.7500
Shank length4.2500
Shank width diameter0.7500
StandardsISO 13399
Toolholder styleHGH
Toolholder typeFace Grooving
