Iscar

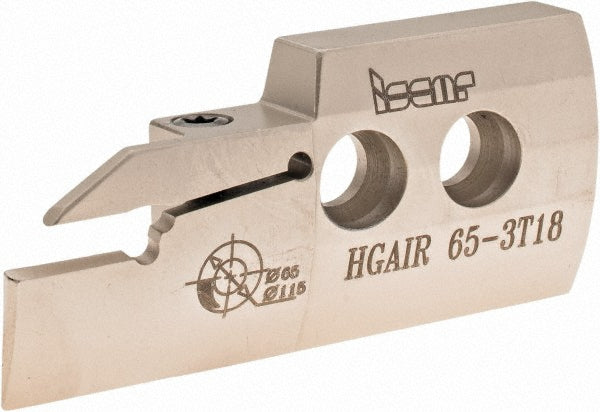

Indexable Grooving - Iscar 2500721
MFR# 2500721Series Heliface
$301.88List $306.30
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500721 indexable grooving. Series Heliface.
Specifications
Blade styleHGAI
Blade width0.4450
Compatible insert styleGRIP; GRIP (Full Radius); HGN-C; HGN-J; HGN-UT
Complete insert compatibilityGRIP 3002Y; GRIP 3003Y; GRIP 3015Y; HGN 3002J; HGN 3003C; HGN 3003UT
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
Maximum depth of cut0.7087
Maximum groove width0.1181
Maximum workpiece diameter4.5300
Minimum groove width0.1181
Minimum workpiece diameter2.5600
Overall length2.5197
StandardsISO 13399
