Iscar

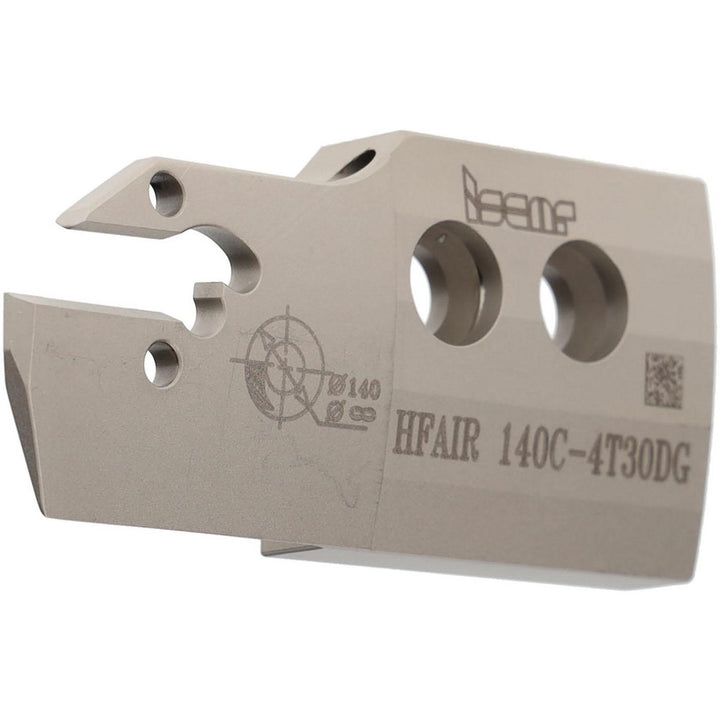

Indexable Grooving - Iscar 2500727
MFR# 2500727Series Heliface
$278.32List $287.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2500727 indexable grooving. Series Heliface.
Specifications
Blade styleHFAI
Blade width0.4290
Compatible insert styleHFPR/L; HFPR/L (Full Radius)
Complete insert compatibilityHFPR 4004; HFPR 4020
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
Maximum depth of cut1.1811
Maximum groove width0.1575
Minimum groove width0.1575
Minimum workpiece diameter5.5100
Overall length2.6969
StandardsISO 13399
