Iscar

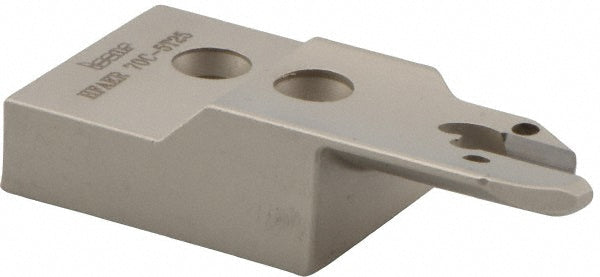

Indexable Grooving - Iscar 2550047
MFR# 2550047Series Heliface
$265.35List $274.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2550047 indexable grooving. Series Heliface.
Specifications
Blade height1.2600
Blade styleHFAE
Blade width0.2040
Compatible insert styleDGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGN-UT/UA; DGN-W; GRIP; HFPR/L; HGPL
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
Maximum depth of cut0.9843
Maximum workpiece diameter3.7402
Minimum groove width0.1969
Minimum workpiece diameter2.7559
Overall length2.5984
StandardsISO 13399
