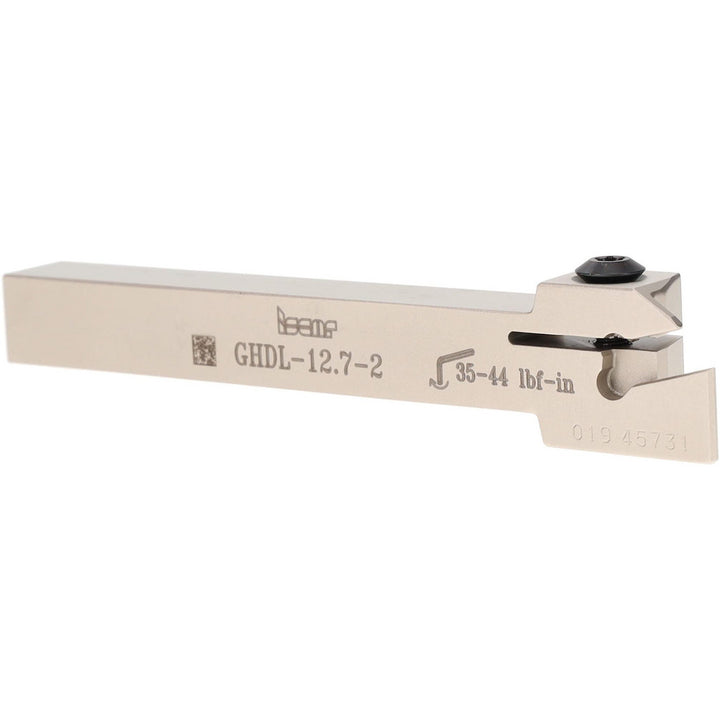

Indexable Grooving - Iscar 2800077

Iscar

Indexable Grooving - Iscar 2800077

MFR# 2800077Cat# GHDL 12.7-2Series Cut Grip

$162.49List $167.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800077 indexable grooving. Series Cut Grip.

Specifications

Back of bar to cutting edge0.4700
Compatible insert size codeGIA-K; GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMN; GIMT; GIMY; GIMY-F; GIP; GIP (flat top W); GIP (full radius W); GIP-E; GIP-UN; GIPA; GIPM-A46 / GIP-1250; GIPY; GITM; GPV; TIP-MT; TIP-P-BSPT; TIP-P-BSW; TIP-P-ISO; TIP-P-NPT
Complete insert compatibilityGIA 3.00K-0.40; GIA 4.00K-0.40; GIA 4.00K-0.80; GIA 5.00K-0.80; GIA 6.00K-0.80; GIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-2.00; GIF 4.23-0.10; GIF 4.45-0.15; GIF 4.78-0.55; GIF 4.
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Hand of holderLeft Hand
Head length1.0300
Insert compatibilityGI..; GPV; TIP
Insert holding methodClamp
Insert seat size0.1
Internal or externalExternal
Manufacturers catalog numberGHDL 12.7-2
Maximum depth of cut0.3200
Maximum groove width0.1250
Minimum groove width0.0160
Overall length4.5000
Shank height0.5000
Shank length3.4700
Shank width diameter in1/2
StandardsISO 13399
Toolholder styleGHD
