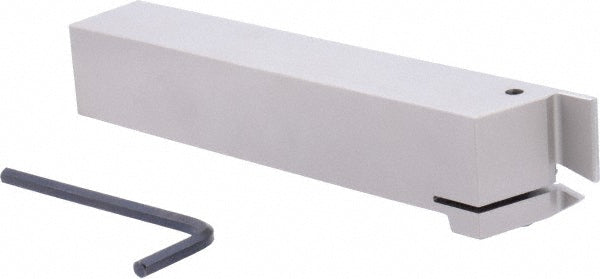

Indexable Grooving - Iscar 2800095

MFR# 2800095Series Cut Grip

$196.59List $203.00 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2800095 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge0.9500

Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP

Complete insert compatibilityGIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIM 3; GIM 3.2; GIM 3C; GIM 3J; GIM 4; GIM 4C; GIM 4J

Coolant throughNo

Cutting directionLeft Hand

Hand of holderLeft Hand

Head length in1

Insert compatibilityGI..

Insert holding methodClamp

Internal or externalExternal

Maximum depth of cut0.3600

Maximum groove width0.1570

Minimum groove width0.1100

Multi use toolYes

Overall length6.0000

Primary workpiece materialUniversal

Shank height1.0000

Shank length in5

Shank width diameter1.0000

StandardsISO 13399

Toolholder styleGHD

Toolholder typeNon-Face Grooving
