Iscar

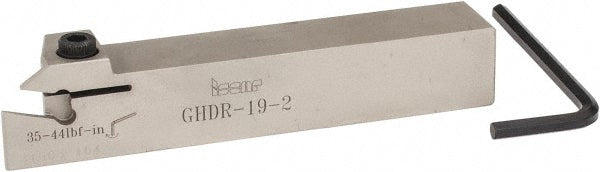

Indexable Grooving - Iscar 2800152
MFR# 2800152Series Cut Grip
$195.04List $201.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800152 indexable grooving. Series Cut Grip.
Specifications
Compatible insert size codeGIA-K; GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMN; GIMT; GIMY; GIMY-F; GIP; GIP (flat top W); GIP (full radius W); GIP-E; GIP-UN; GIPA; GIPM-A46 / GIP-1250; GIPY; GITM; GPV; TIP-MT; TIP-P-BSPT; TIP-P-BSW; TIP-P-ISO; TIP-P-NPT
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.0300
Insert compatibilityGI..; GPV..; TIP..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.3300
Maximum groove width0.1250
Minimum groove width0.0160
Msc manufacturer numberGHDR/L 19-2
Overall length4.5000
Shank height0.7500
Shank length4.5000
Shank width diameter in3/4
StandardsISO 13399
Toolholder styleGHD
