Iscar

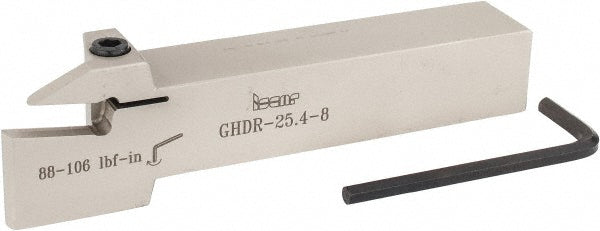

Indexable Grooving - Iscar 2800162
MFR# 2800162Series Cut Grip
$233.67List $241.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800162 indexable grooving. Series Cut Grip.
Specifications
Compatible insert size codeGDMF; GDMM-CC; GDMN; GDMU; GDMY; GDMY (Full Radius); GDMY-F; GIA-K (Long Pocket); GIF (Long Pocket); GIF-E; GIPA/GIDA 8 (Full Radius)
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.5800
Insert compatibilityGI..; GPV..; TIP..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.0000
Maximum groove width0.3270
Minimum groove width0.2600
Overall length6.0000
Shank height1.0000
Shank length6.0000
Shank width diameter in1
StandardsISO 13399
Toolholder styleGHD
