Iscar

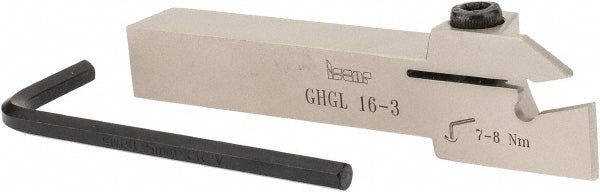

Indexable Grooving - Iscar 2800233
MFR# 2800233Series Cut Grip
$171.70List $177.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800233 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge (mm)14.70
Compatible insert size codeGIM; GIMF; GIMN; GIMT; GIMY
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length1.4173
Insert compatibilityGI..,TIP..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.5700
Maximum groove width0.1575
Maximum workpiece diameter1.5700
Minimum groove width0.1181
Multi use toolNo
Overall length4.3307
Primary workpiece materialUniversal
Shank height0.6299
Shank length4.3310
Shank width diameter0.6299
StandardsISO 13399
Toolholder styleGHG
Toolholder typeNon-Face Grooving
