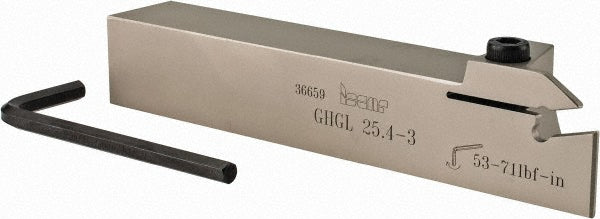

Indexable Grooving - Iscar 2800242

Iscar

Indexable Grooving - Iscar 2800242

MFR# 2800242Cat# GHGL 25.4-3Series Cut Grip

$206.18List $212.90 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800242 indexable grooving. Series Cut Grip.

Specifications

Back of bar to cutting edge0.9500
Compatible insert size codeGIA-K; GIF; GIF-E; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY-F; GIP; GIP-E; GIPA; GIPM-A46 / GIP-1250; GIPY; GITM; TIP-MT; TIP-P-BSPT; TIP-P-BSW; TIP-P-ISO; TIP-P-NPT; TIP-P-UN; TIP-WT
Complete insert compatibilityGIA 3.00K-0.40; GIA 4.00K-0.40; GIA 4.00K-0.80; GIA 5.00K-0.80; GIA 6.00K-0.80; GIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-2.00; GIF 4.23-0.10; GIF 4.45-0.15; GIF 4.78-0.55; GIF 4.
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Hand of holderLeft Hand
Head length1.4200
Insert compatibilityGI..; TIP
Insert holding methodClamp
Insert seat size0.1
Internal or externalExternal
Manufacturers catalog numberGHGL 25.4-3
Maximum groove width0.1570
Minimum groove width0.1180
Overall length6.0000
Shank height1.0000
Shank length4.5800
Shank width diameter in1
StandardsISO 13399
Toolholder styleGHG
