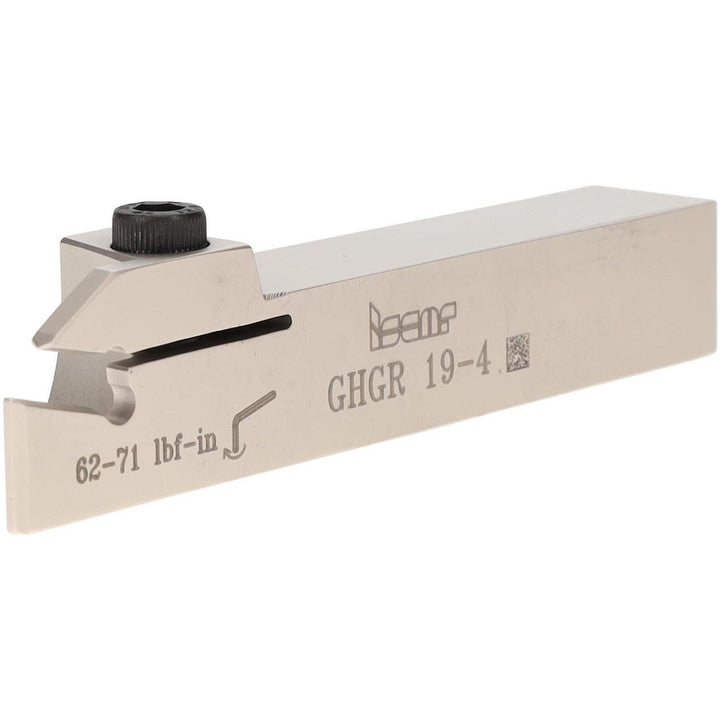

Indexable Grooving - Iscar 2800262

Iscar

Indexable Grooving - Iscar 2800262

MFR# 2800262Series Cut Grip

$195.04List $201.40 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800262 indexable grooving. Series Cut Grip.

Specifications

Back of bar to cutting edge0.6900
Compatible insert size codeGIA-K; GIF; GIF-E; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY-F; GIP; GIP-E; GIPA; GIPM-A46 / GIP-1250; GIPY; GITM; TIP-MT; TIP-P-BSPT; TIP-P-BSW; TIP-P-ISO; TIP-P-NPT; TIP-P-UN; TIP-WT
Complete insert compatibilityGIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.23-0.10; GIF 4.45-0.15; GIF 4.78-0.55; GIM 4; GIM 4C; GIM 4J
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.4000
Insert compatibilityGI..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.7900
Maximum groove width0.1900
Minimum groove width0.1500
Overall length4.5000
Shank height0.7500
Shank length3.1000
Shank width diameter in3/4
StandardsISO 13399
Toolholder styleGHG
